FURNITURE CASTERS (All prices are subject to change)

Minimums apply on certain casters below - Please call sales

1350Black Nylon Furniture Casters
90 lbs. Capacity
  • Made with quality nylon.
  • Applications include:

    • Mobil medical equipment.
    • Office equipment& chairs.
    • Television & Amp; stereo stands.
    • Displays.

Fastener Specifications

Type
Code
Size
Top Plate
01
Overall:1-1/2 X 1-1/2
Hole Spacing:1 X 1

Attaching Bolt Size:3/16

Grip Ring Stem
11
7/16 X 1-3/16
Threaded Stem
21 1/4-20 X 3/4
22 5/16-18 X 3/4
23 3/8-16 X 1
Fastener Code Wheel Diameter
Load Capacity
Overall Height
Swivel Part Number Price
each
Swivel with Brake Price
each
01
2"
90
2-3/8
BNFC-01 2.50 BNFC-01B 3.05ea.
11 2" 90 2-3/8 BNFC-11 2.50 BNFC-11B 3.05ea.
21 2" 90 2-3/8 BNFC-21 2.50 BNFC-21B 3.05ea.
22 2" 90 2-3/8 BNFC-22 2.50 BNFC-22B 3.05ea.
23 2" 90 2-3/8 BNFC-23 2.50 BNFC-23B 3.05ea.

Quality Chrome Hooded Twin Wheel Casters

Wheel Type

Wheel
Dia

 Load
Cap.

Model
Number

Fastener Type

Fastener Size

Price Each

Hard Polyamide

2

75

SHPA5023CC-HARD

DIE CAST BODY!

Friction Ring

7/16 Dia. x
7/8" Long

7.60ea.

Soft Polyurethane

75

SHPA5023CC-SOFT

DIE CAST BODY!

9.52ea.

* The special Soft tread wheels are ideal for Hardwood Flooring

3/8" Friction ring stems, top plates and threaded stems are also available please inquire


Quality Gold Hooded Twin Wheel Casters

Wheel Type

Wheel
Dia

 Load Cap.

Model Number

Fastener Type

Fastener Size

Price Each

Hard Polyamide

50mm

2

75

SHPA5023BB-HARD

DIE CAST BODY!

Friction
Ring

7/16 Dia.
 x
7/8" Long

7.60ea.

Soft Polyurethane

75

SHPA-5023BB-U-SOFT

DIE CAST BODY!

9.52ea.

* The special Soft tread wheels are ideal for Hardwood Flooring

3/8" Friction ring stems, top plates and threaded stems are also available please inquire


Bright Brass Metalized Hooded Rubber Ball Wheel Caster

Wheel Type

 Load Cap.

Model Number

Fastener Type

Fastener Size

Price Each

2" Urethane

75 lbs

PPA50211BR-U

Friction Ring

7/16 Dia.
 x
7/8" Long

8.80ea.

This urthane non-marking ball is the perfect for Hardwoods, Tile and Linoleum floors. Other stem sizes and  body finishes are available
PLEASE INQUIRE!



Single Wheel Office Chair and Furniture Casters

Supplied with non-marking soft rubber wheels for use on hard smooth floors
or non-marking Urethane for multi use applications. Hooded bright chrome finish!





**Available Fasteners ( replace XX with appropriate code or size from the table below)

Friction Rings (shown)

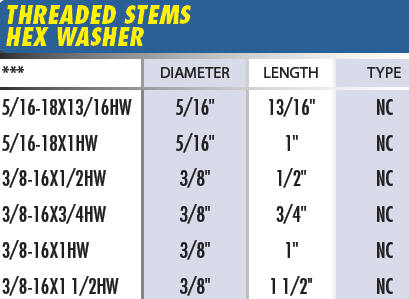

Threaded Stems Top Plates
Code Size 5/16-18 X 13/16" Long

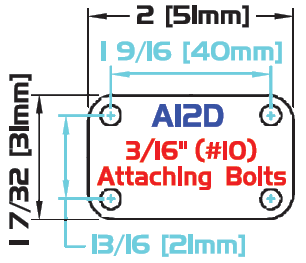

A12D Plate
1-3/16 x 2" overall
with a 13/16" x 1-9/16"
 Bolt Hole Pattern

375 3/8" D  X 1" LONG 5/16-18 X 1" Long
437 X 1 7/8 7/16" D X 1-7/8" L 3/8-16 x 1/2" Long
437S X 1 5/16 7/16" D X 1-5/16" L 3/8-16 x 3/4" Long
437S X 1 7/16" D X 1" L 3/8-16 x 1" Long A17D Plate
1-1/2 x 2-1/2" overall
with a 1" x 2"
 Bolt Hole Pattern
437S X 1-5/16 7/16" D X 1-5/16" L 3/8-16 x 1-1/2" Long
437S X 1 7/8 7/16" D X 1-7/8"L Grip Neck stems Code 375S X 1 also available







Diameter Tread width Wheel Type Capacity Overall
Height
Bearing **Part Number Price
2" 7/8 Black Soft Rubber 75 2-5/8 Steel S0702-XX-SR $6.81
all
fasteners
Grey Soft Rubber Steel S0702-XX-SRG
Black Urethane Nylon S0702-XX-U
Grey Urethane Nylon S0702-XX-UG
2-1/2" 7/8 Black Soft Rubber 75 3-3/16 Steel S0722-XX-SR $7.06
all
fasteners
Grey Soft Rubber Steel S0722-XX-SRG
Black Urethane Nylon S0722-XX-U
Grey Urethane Nylon S0722-XX-UG

New Ice Wheels Available



All of the casters shown above are available with a variety of stems and plates. If you require something different like a threaded stem or plain stem; or any size or type of socket, please call us toll free 888-472-5737  We can help you!
