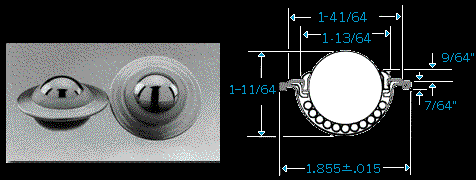

Disc Mount Ball Transfer  1" Ball



These versatile units are available in all-carbon or all-stainless steel. The 1-inch diameter main ball unit has a load rating of 125-pounds.  DMC Bolt Down Covers are available at a cost of $ .97 each in any quantity.

ALL STAINLESS STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF STAINLESS STEEL!  1) The stud cups, top covers, retainers, and bolts are manufactured with a 304 grade of stainless steel. 2) The ball cups, main balls, and support balls are manufactured with a 400+ grade of stainless steel.  All components using this grade are heat treated for hardness and durability.  Thus, the elements in the stainless steel become magnetized and responsive to a magnet.  Please call for all stainless quotes!!  All prices are subject to change.

 Part #

Ball Material

Housing

Loading
Capacity

Price

 DMC

DMS

NDMC

NDMS

Carbon Steel

Stainless

Nylon

Nylon

Carbon Steel

Stainless

Carbon Steel

Stainless

125 lbs.

125 lbs.

75 lbs.

75 lbs.

   5.39

Call

9.30

Call

Pricing Above is our standard Pricing,
Please call for Quantity Discounts!
Price breaks start
at 50-100 pieces, then100-499 pieces, then 500-2499 pieces, and 2500 pieces and above.

Return Top of Page

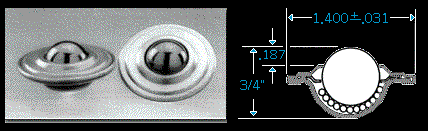

Disc Mount Ball Transfer 5/8" Ball

The more compact 5/8-inch main ball units have a 40-lb load capacity for light weight, ball-up or ball-down mounting.  5/8 DMC Bolt Down Covers are available at a cost of $ .78 each in any quantity.

ALL STAINLESS STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF STAINLESS STEEL!  1) The stud cups, top covers, retainers, and bolts are manufactured with a 304 grade of stainless steel. 2) The ball cups, main balls, and support balls are manufactured with a 400+ grade of stainless steel.  All components using this grade are heat treated for hardness and durability.  Thus, the elements in the stainless steel become magnetized and responsive to a magnet.  Please call for all stainless quotes!!  All prices are subject to change.



 Part #

Ball Material

Housing

Loading
Capacity

Price

 5/8 DMC

5/8 DMS

5/8 NDMC

5/8 NDMS

Carbon Steel

Stainless

Nylon

Nylon

Carbon Steel

Stainless

Carbon Steel

Stainless

40 lbs.

40 lbs.

40 lbs.

40 lbs.

3.67

Call

7.31

Call

Pricing Above is our standard Pricing,
Please call for Quantity Discounts!

Price breaks start at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and above.
