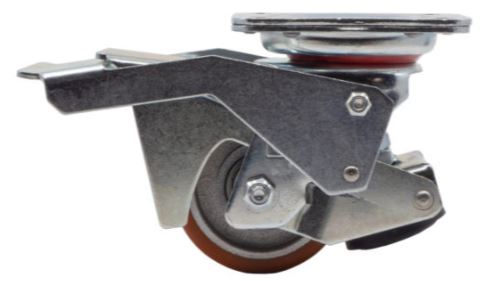

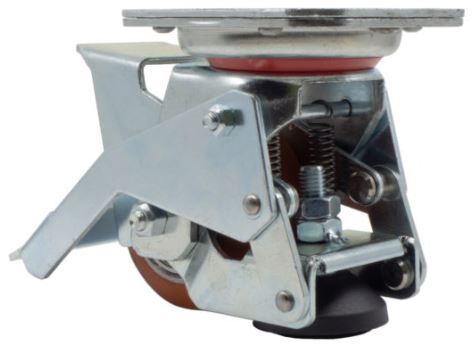

LEVELING | LIFTING CASTER!
This leveling caster
is used wherever mobile machines, apparatus and transport
equipment should be brought to a stable stand.
The force
necessary to service the pedal does not depend on the weight of
the load.
Stability by pressing a pedal!
Note: The
actuation pedals rotate with caster.
 | SLK = Wheel Polyamid |
| SLP = Wheel Polyurethane with ball bearings
|
| SLKX = Wheel Polyamid, housing and caster in stainless |
All dimensions in table
below are in Millimeters
|
 |
 |
 |
 |
 |
 |
Turning
radius
|
Load Cap |
Part Number |
Price
USD | |
75 | 40 |
105 x 85 |
80 x 60 |
9 |
115-123 |
150 |
300 |
SLP 01-75 |
$337.95ea. | | 80 | 25 |
105 x 85 |
80 x 60 | 9 |
117-123 |
150 |
150 |
SLP 01-80 |
$292.95ea. | | 125 | 45 |
135 x 110 |
105 x 80 | 13 |
171-181 |
190 |
450 |
SLP 1/125 |
$412.95ea. | | 75 | 40 |
105 x 85 |
80 x 60 | 9 |
115-123 |
150 |
300 |
SLK 01/75 |
$325.95ea. | | 80 | 30 |
105 x 85 |
80 x 60 | 9 |
117-123 |
150 |
200 |
SLK 01/80 |
$292.95ea. | | 125 | 50 |
135 x 110 |
105 x 80 | 11 |
171-181 |
190 |
450 |
SLK 1/125 |
$412.95ea. | | 125 | 50 |
140 x 110 |
105 x 80 | 13 |
160-176 |
190 |
400 |
SLKX 1/125 INOX |
$562.50ea. |
FOB Switzerland |
Prices without Freight, Packing, X-ray Fee and Bank Charges.
Estimated shipping to the USA on 4 pieces is now at $670.00

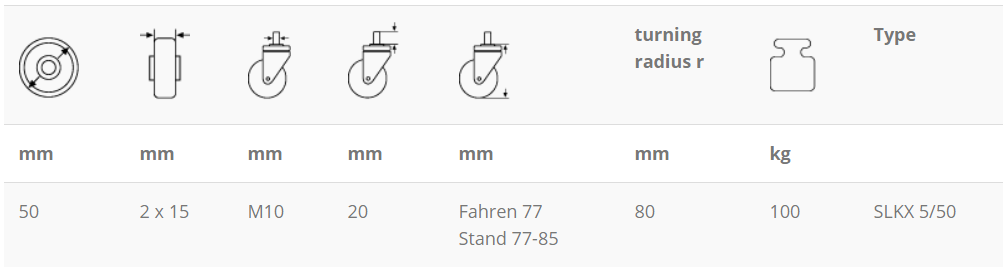

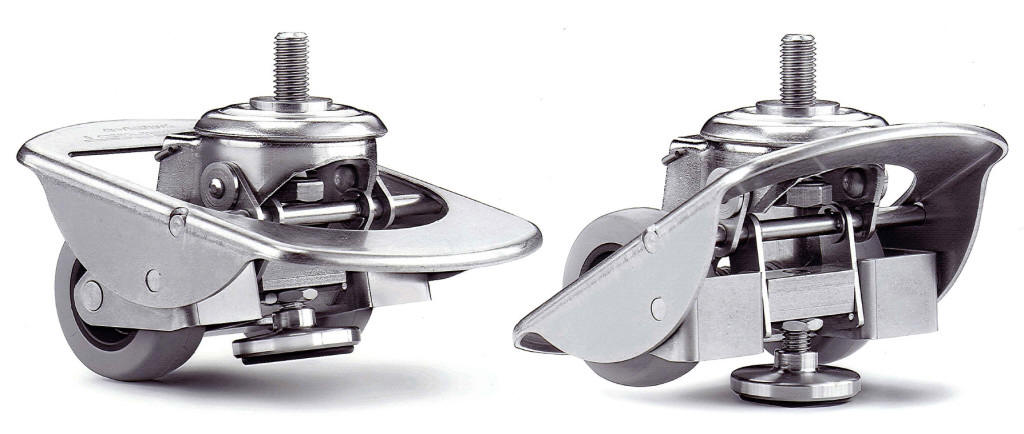

Dual Wheel Leveling Caster in Stainless
Steel
|
Stainless steel 1.4301 |
| good maneuverability
thanks to the long distance between the wheels |
| wheels nylon with plain
bore |
| leveling foot polyamide,
diameter 40 mm with NBR rubber pad |
| height adjusting range
(foot operated): 8 mm, by turning the caster around the mount |
| ground clearance of the
mount: 5 mm, can be improved up to 20 mm by swiveling the
mount |
| sizes overall: length 140
mm, width 100 mm |
2019
Pricing Part# SLKX 5/50 | $410.00each USD
Prices ex work, without freight, packing and taxes.
Delivery
5 - 14 business days from receipt of order (All prices subject to change)
Please call 888-472-5737 for availability.
Sales: Rick
ext.101 or Bob ext.100
or
email:
sales@casterstore.com
Discounts may apply for higher quantities!
