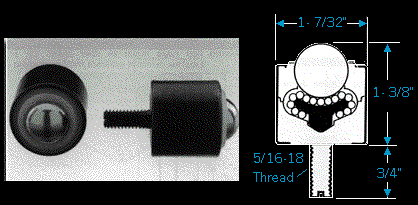

Stud Mount Ball Transfer
Systems Ball Transfer can be used in the ball up or ball down position.
All steel ball
transfers with your choice of stud sizes. Sealed and
lubricated to prevent the entry of foreign material and
increase the life of the unit. The 1-inch main ball rotates on
an 80 1/8-inch support balls, and 1/4-inch stud in all
stainless housing is perfect for food processing plants and
corrosive environments. A 1-inch nylon main ball is available
in both carbon steel and stainless steel for marking sensitive
materials.
ALL STAINLESS
STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF
STAINLESS STEEL! 1) The stud cups, top covers,
retainers, and bolts are manufactured with a 304 grade of
stainless steel. 2) The ball cups, main balls, and support
balls are manufactured with a 400+ grade of stainless steel.
All components using this grade are heat treated for hardness
and durability. Thus, the elements in the stainless
steel become magnetized and responsive to a magnet.
Please call for all stainless quotes!! All prices are
subject to change.
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Stud
|
Price |
|
SMC 1/4
SMS 1/4
NSMC 1/4
NSMS 1/4
SMC 5/16
NSMC 5/16
SMC 3/8
NSMC 3/8
|
Carbon Steel
Stainless
Nylon
Nylon
Carbon Steel
Nylon
Carbon Steel
Nylon
|
Carbon Steel
Stainless
Carbon Steel
Stainless
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
|
75 lbs.
125 lbs.
75 lbs.
75 lbs.
75 lbs.
75 lbs.
75 lbs.
75 lbs.
|
1/4-20
1/4-20
1/2-20
1/4-20
5/16-18
5/16-18
3/8-16
3/8-16
|
5.41
Call
9.43
Call
5.50
9.46
5.55
9.51 |
Return
Top of Page

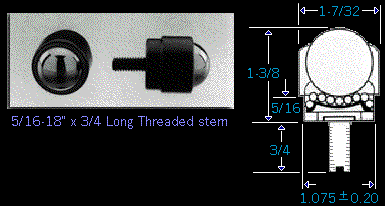

Stud Mount Ball Transfer
Systems 1"
Ball
This LSC unit
with it's smaller outside diameter is designed for multiple
unit installation. Can only be used in the Ball up
position. All prices are subject to change.
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Stud
|
Price |
|
LSC
5/16
|
Carbon
Steel
|
Carbon
Steel
|
65
lbs.
|
5/16-18
|
5.69 |
|
LPC
|
Carbon
Steel |
Carbon
Steel |
65
lbs. |
No
stud |
5.57 |
Return
Top of Page

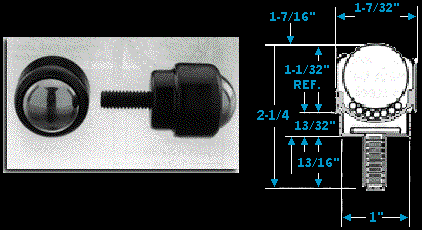

Stud Mount Ball Transfer
Systems 1"
Ball
Designed
for multiple unit installation, these versatile ball transfers
are engineered for either ball up, ball down, or sideways mounting. The
HSC is constructed of a drawn steel housing with black oxide
finish. All prices are subject to change.
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Stud
|
Price |
|
HSC
NHSC
|
Carbon Steel
Nylon
|
Carbon Steel
Carbon Steel
|
100 lbs.
75 lbs.
|
5/16-18
5/16-18
|
7.17
9.13 |
Pricing Above
is our standard Pricing,
Please call for Quantity Discounts! Price
breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and
above.
Return
Top of Page

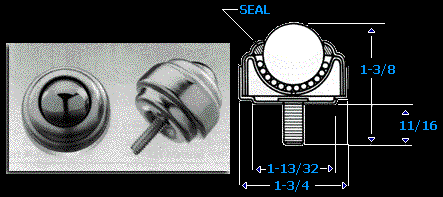

Stud Mount Ball Transfer
Systems 3/4"
Ball
The 3/4 SMC has
a 3/4-inch diameter chrome steel main ball fitted with a
molded nylon wiper seal, rotating on 3/32-inch support balls.
**Parts
have been discontinued and are no longer available.
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Stud
|
Price |
|
3/4 SMC
3/4 PMC
|
Chrome
Chrome
|
Carbon Steel
Carbon Steel
|
150 lbs.
150 lbs.
|
5/16-18
- - - - - -
|
**Discontinued **Discontinued
|
**
Return Top of Page

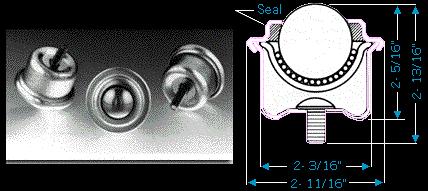

Stud Mount Ball Transfer
Systems 1-1/2"
Ball
With a 250 lbs.
load capacity, this heavy duty unit is available in all carbon
steel, all stainless steel, and as a carbon or stainless
housing with a nylon main ball. A 3/8-16 stud allows faster,
easier installation.
ALL STAINLESS
STEEL BALL TRANSFERS MANUFACTURED, USE TWO DIFFERENT GRADES OF
STAINLESS STEEL! 1) The stud cups, top covers,
retainers, and bolts are manufactured with a 304 grade of
stainless steel. 2) The ball cups, main balls, and support
balls are manufactured with a 400+ grade of stainless steel.
All components using this grade are heat treated for hardness
and durability. Thus, the elements in the stainless
steel become magnetized and responsive to a magnet.
Please call for all stainless quotes!! All prices are
subject to change.
Can be used Ball up or Ball down.
Part
#
|
Ball
Material
|
Housing
|
Loading
Capacity
|
Stud
|
Price |
|
1 1/2 SMC
1 1/2 NSMC
1 1/2 SMS
1 1/2 NSMS
|
Carbon Steel
Nylon
Stainless
Nylon
|
Carbon Steel
Carbon Steel
Stainless
Stainless
|
250 lbs.
250 lbs.
250 lbs.
250 lbs.
|
3/8-16
3/8-16
3/8-16
3/8-16
|
18.59
27.41
Call
Call
|
Pricing Above
is our standard Pricing,
Please call for Quantity Discounts!
Price
breaks start
at 50-100 pieces, then 100-499 pieces, then 500-2499 pieces, and 2500 pieces and
above.
Manufacturer minimum order 10 pieces - EXCEPT Stainless Steel
