"Pop-Up" Ball Transfer Platforms




Minimize lifting and pushing with multi-directional Ball Transfer Platforms.  An economical way to change direction for free movement of boxes, dies, and parts.  A ball retraction handle is conveniently located on the side of the platform.  Mount to our scissor carts* or post tables*, please inquire.  Rigid  and retractable stops are available- (Order reference code: VTL).



**All prices are subject to change.

Model Number Overall Size (W x L) Ball Spacing (W x L) Capacity (Pounds) Net Wt. (Pounds) Price
POPUP-1932 19" x 32" 4 1/2" x 5 1/4" 250 70 inquire
POPUP-4048 40" x 48" 4 1/2" x 5 1/4 250 180 inquire

*Carts and tables sold separately.

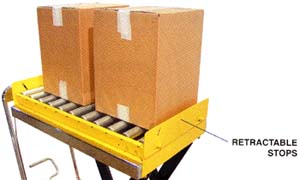

Provide smooth and easy flow from cart to workstation. Attach to many of our scissor carts, scissor tables and work benches. Allows you to position objects easy. Features retractable end stops so items won't slide off during transit. Ideal for use at feed tables for sheet metal working machines, press brakes and machine centers.  Call us for pricing (888)472-5737.

Conveyor with Retractable Stops

Model Overall Size (WxL) Roller Spacing Capacity (lbs) Net Weight (lbs)
CONV-1832 18"x32" 3" Centers 800 63






Shown with a Scissor Cart

(Cart sold separately)

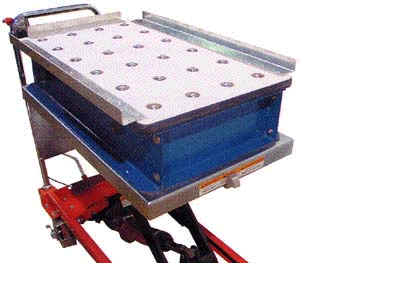

Units bolt on simply to any platform.  Ball bearings are on 3-1/4" centers.  Standard sizes have 12 gauge chrome bases, custom sizes are powder coated blue.  Call us for pricing (888)472-5737.

Ball Transfer Platforms
Model Overall Width Overall Length Finish Capacity (lbs) Net Weight (lbs)
BALL-1830 18" 30" Chrome 75 55
BALL-2036 20-1/2" 36" Chrome 75 80
BALL-2448 24" 48" Powder Coat Blue 75 110
BALL-4048 40" 48" Powder Coat Blue 75 150
BALL-3060 30" 60" Powder Coat Blue 75 160




Single strips of Ball Transfers, series BALL-S, are easy to install and simple to use.  To install simply line it up on you cart, table or work station and bolt on at each end.  The ball transfers on each strip are on 3-1/4" centers.  Standard finish is chrome.  Call us for pricing (888)472-5737.

Ball Transfer Strips
Model Length Ball Spacing Finish Capacity (lbs) Net Weight (lbs)
BALL-S30 30" 3-1/4" Chrome 75 9
BALL-S40 40" 3-1/4" Chrome 75 12
BALL-S60 60" 3-1/4" Chrome 75 16

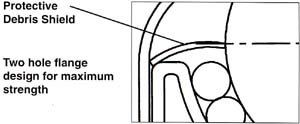

The Single Ball Transfers support balls in hardened cup with protective debris shield and includes lag-down tabs.  Call us for pricing (888)472-5737.

Single Ball Transfer
Model Ball Diameter Support Finish Capacity (lbs) Net Weight (lbs)
BALL-1F 1" 1/8" Chrome 75 1/2
