Foot Master GD-60 Leveling Lifting and Retractable Casters GD-60

New price on GD-60 $32.95ea.

New price on GDR-60 $52.14ea.

New lower prices!

REMARKS
The steel inserted frame is die cast with aluminum alloy to maintain dynamic and thrust power. The top plate is die forged and machined precisely and wheel is injected with engineering plastic nylon which has better properties of impact, compressive strength and wear ability. The leveling pad of N.B.R. is normal and Urethane is arranged by order.

GDR-60

Specifications

Load Capacity (per caster) 550 lbs (250 kg)

Temperature Range +14 ~ +194° F (-10 ~ +90° C)

Weight 1.6 lbs (0.7 kg)

*Mounting Stem (1) M12x1.75P

Frame Material (2) Aluminum Die Cast

Handle (3) ABS

Leveling Pad Material (4) NBR

Wheel Material (5) Nylon-6

Surface Treatment Powder Coated & Zinc Galvanized

Options

Leveling Pad Polyurethane or Anti-static Polyurethane

Wheel Material Polyurethane with Aluminum Core

Packaging

Package Quantity 4

Gross Weight 6.4 lbs (2.9kg)

Package Size (W x H X L) 8.9" x 4.3" x 6.3"

Mounting Hardware Included

APPLICATIONS
Test, medical, optical, clean room equipments; Frame of light weight computers, Control panels, Semiconductor equipments, Switchboards, F.M.S. line, etc.

In case of requiring of ANTI-CORROSION, parts of "*" are issued with stainless steel or special surface treatment by order.

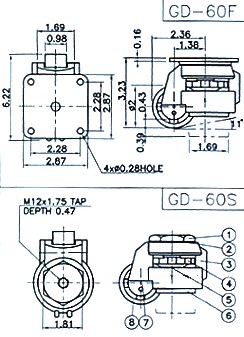

ANALYSIS		Load Capacity
Load per Piece		550 lbs
Net Weight	GD-60F	1.8 lbs
	GD-60S	1.6 lbs
Temperature Range		-14 ~ 194^oF

MATERIALS

No	Parts	Materials	Remarks
1*	Top Plate	1045	Zn galvanized
2*	Ball	1045	Ni-Cr. galvanized
3	Frame	SC114A	Ivory powder coated
4	Handle	Nylon-6	Orange
5*	M-10 Leveler	1045	Zn galvanized
6	Pad	N.B.R.	Urethane by order
7*	Pin	1045	Zn galvanized
8	Wheel	Nylon-6	Black
In case of requiring of ANTI-CORROSION, parts of "*" are issued with stainless steel or special surface treatment by order.
